1. DESCRIPTION:
Oil catch thank : because engine second burning oil composition can lead to valve carbon deposition and thus produce adverse effect on the engine, thereby decreasing oil and gas into the intake manifold in secondary burning opportunity is very carved significance, oil breathable pot role is to collect the crankcase oil steam, although in oil steam cannot be avoided, but tried to reduce the intake manifold in a certain extent reduce secondary burning, engine protection chance.
2. Specification
An oil catch tank is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.
3. Features
Type : Oil Breather Tank
Capacity : 0.5 Litre / 500ml
Diameter : 76mm / 3 inches
Overall Height : 187mm / 7.36 inches
Body Height : 138mm / 5.43 inches
Sight Glass Port Size : 1/8 inches NPT
Inlets / Outlets Size : 12mm / 1/2 inches OD Barb
Drain Plug Thread Size : M12 x 1.5 Metric
Installation : Mounting Tab At The Back Near The Top
Material : Polished Aluminum
4.Function:
(1). Collect the oil and moisture from the crankcase
(2). Reduce the moisture of the intake system
(3). Avoid reburn
(4). Protect the engine
Product Tags:
|
|

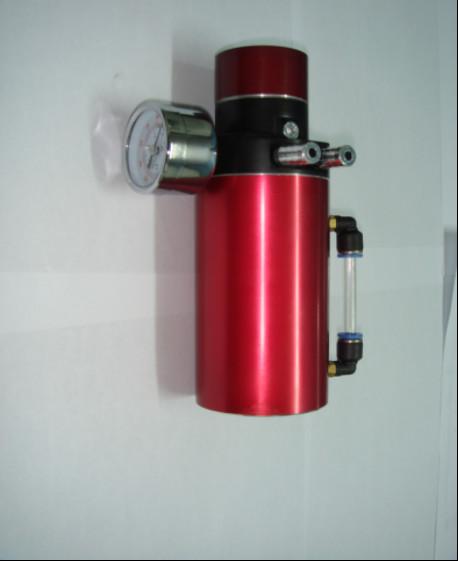

High Performance Vehicle Oil Catch Tank Various Sizes 0.5 / 0.75 / 1 / 2L Images
|
